Sparmax C-TC-610HCompressor

Description

Art No: C-TC-610H – Sparmax TC-610H Compressor

The Sparmax TC-610H Compressor provides a powerful airflow (23-28 lpm), delivering close to doubled airflow which can meet the needs of airbrush enthusiasts and professionals alike. It features a 2.5L air tank system which helps to provide a consistent airflow with minimal pulsations. It has ample power for any airbrushing task and is suitable for professional airbrush users doing general or extended airbrush applications.

Being automatic, when the TC-610H’s air tank pressure falls below 40psi, the compressor runs to recharge the tank back to 60psi and then switches off – the compressor runs to the demand of the air tank, rather than switching on/off every time the airbrush trigger is pressed.

The TC-610H is enclosed in a sturdy steel case with carrying handle, making storing and transporting more convenient, allowing you to personalize its surface in any way you want.

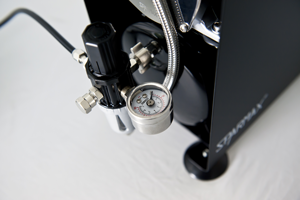

The TC-610H is fitted with a detachable/adjustable pressure regulator / moisture filter and pressure gauge set. The pressure regulator has 2 x 1/8 BSP outlets (1 x blanking cover included) & is supplied with a 3M braided 1/8 BSP hose.

The Sparmax TC-610H compressor features:

• Low maintenance, oil-less air compressor
• 2.5 Litre storage tank
• Working pressure from 0 psi to 60 psi (4.1bar)
• Auto on/off switch: 2.8/4.1 bar (40/60psi)
• Air flow: 23 – 28 lpm (0.81 – 0.98 cfm) at open flow
• 1/6 HP (135 Watt) Motor
• 2 x 1/8 BSP outlet on compressor
• Detachable pressure regulator, moisture filter & gauge set
• 1 x 3M Braided hose
• Strong protective metal case with handle
• Noise level: 53 decibels
• Size: L27 x W16 x H37 cm (10.6″ x 6.3″ x 14.5″)
• Weight: 7.1 kgs (15.6 lbs)
• Voltage: 220-240V 50Hz
• Duty cycle: 60 minutes continuous use. Please allow the motor to rest for at least 20 minutes after each cycle of continuous use.

Suitable for running two of the following airbrushes (or similar) concurrently:
(a multiple-outlet manifold is additionally required to connect two airbrushes)

• Sparmax SP35, SP35C, MAX-3, MAX-4, HB-040, SP-20X, DH-125
• Sparmax GP-35, GP-50
• Premi Air G35
• Neo for Iwata
• Iwata Revolution BR, CR, SAR, BCR, TR1, TR2, M1, M2
• Iwata Eclipse (or one G3, G5 or G6)
• Iwata HP
• Iwata HP-Plus
• Iwata Hi-Line
• Iwata Hi-Line HP-TH (will only run one)
• Iwata Custom Micron
• Iwata Kustom series (or one HP-TH)
• Paasche CC
• Paasche F
• Paasche Talon
• Paasche V
• Paasche VJR
• Paasche VSR90
• Paasche VV
• Badger 100
• Badger 150 (except with HD head)

Suitable for running one of the following airbrushes, small spray guns or similar:

• Iwata Eclipse G3
• Iwata Eclipse G5
• Iwata Eclipse G6 (not fan pattern)
• Iwata Hi-Line HP-TH
• Paasche H
• Paasche HS
• Paasche VL
• Paasche VLS
• Paasche MIL-SET
• Paasche AEC
• Paasche 200T (at low pressure for tanning)
• Badger 150 HD
• Badger 155
• Badger 175
• Badger 200
• Badger 250
• Badger 260
• Badger 350
• Sparmax GP-850
• Flake King 500

610H Manual :

For more information or advice on this product, please contact us.

This Sparmax TC-610H compressor is warranted against manufacturing defects of materials or workmanship for a period of 2 years from the original date of purchase. This warranty does not cover pistons and automatic switches, since these parts need to be replaced occasionally due to normal wear.

Additional information

Weight	8.5 kg
